GREATER VERSATILITY, MORE VISIBILITY WITH SLIM SIGHTLINES.

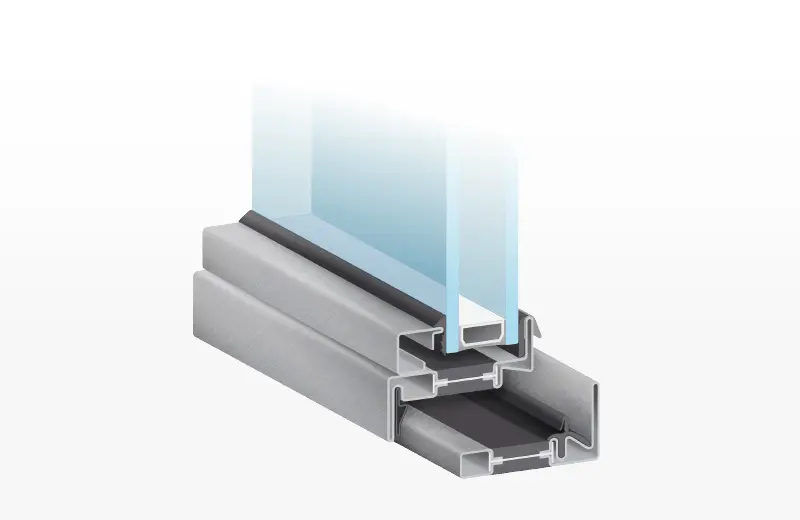

FARO 65 thermally broken window and door profiles are the ideal solution for minimal frames and high thermal performance. Lots of design flexibility is available with this system.
FaroBV 65
Multiple glazing bead profiles
Internal and external rebate
Internal rebate seal
Thermally broken system:
Polyurethane
Polyamide break
Frame with weep system seal
Maximum glazing pocket of 43mm (1 11/16″)
AVAILABLE LINES
LUXURY LINE - Available in Galvanized Steel, Stainless Steel, Cor-Ten Steel, Brass
HINGE:
Mechanically fastened, fully adjustable hinges
(vertical and horizontal)
GLAZING BEAD:
Welded galvanized steel, stainless steel, Cor-Ten steel, and bronze glazing beads
(square, sloped, L, gothic shaped)
THERMALLY BROKEN SYSTEM:
Masking off of thermal break prior to finishing for aesthetics
OTHER:
Grinding of welded corners and frame surfaces for smooth look
ESSENTIALS LINE - Available only in Galvanized Steel
HINGE:
Hinges welded to frame
(vertical adjustment only)
GLAZING BEAD:
Welded aluminum square, L, or sloped glazing beads
THERMALLY BROKEN:
Complete painting of thermal break
OTHER:
Slightly less grinding of the frame and welded corners prior to finishing
